Omi magnetic clip.

A small four-magnet carrier for Omi. Two iterations, with the print files and editable CAD to try them yourself.

Download v5 Rear-loading · ZIP · 5.90 MB Download v4 Front retainers · ZIP · 6.52 MB

v4 printed and worn. See the finished build below. v5 has CAD and slicer checks only; its physical fit and magnetic holding remain untested. Print the small fit coupon first.

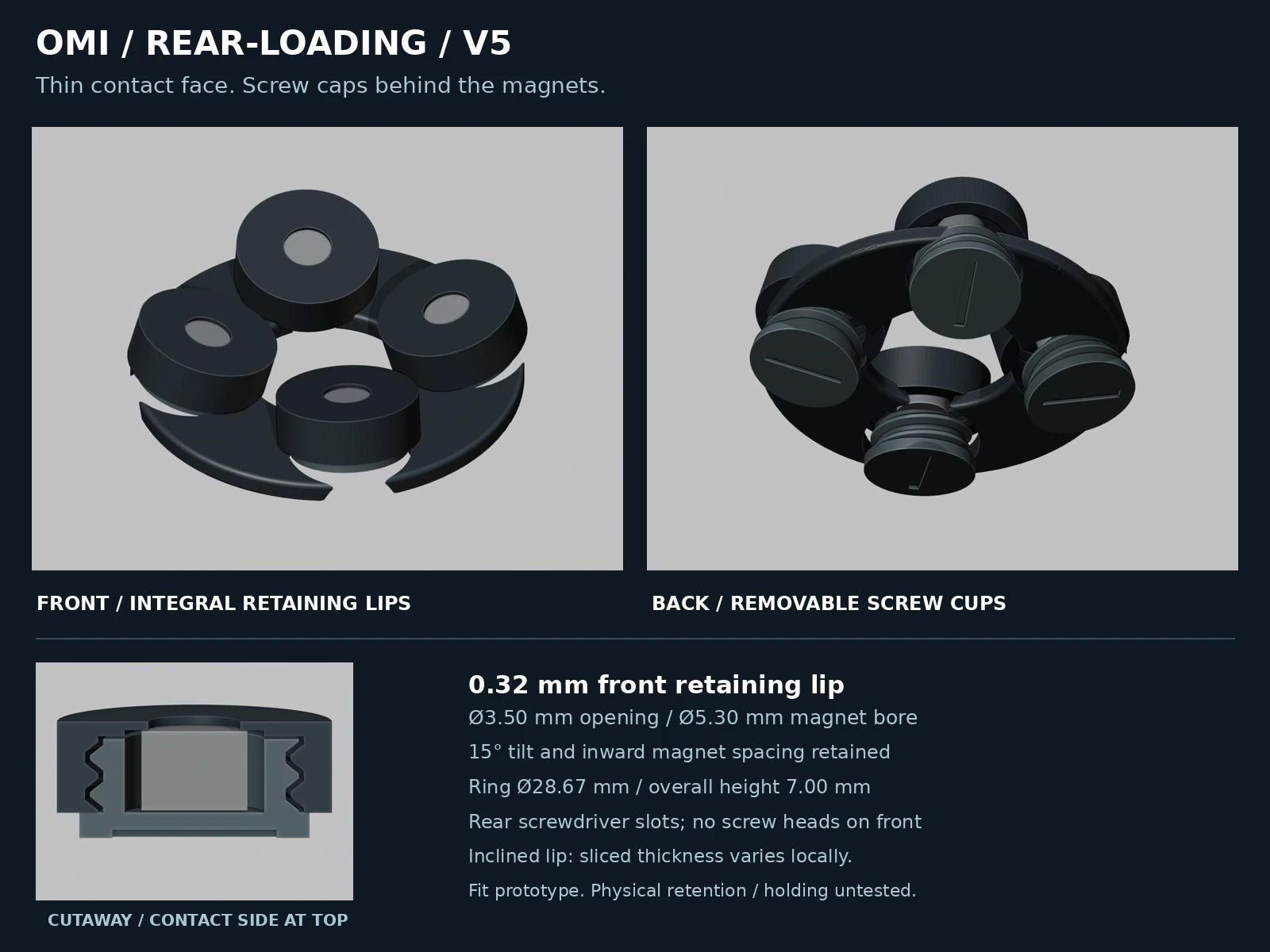

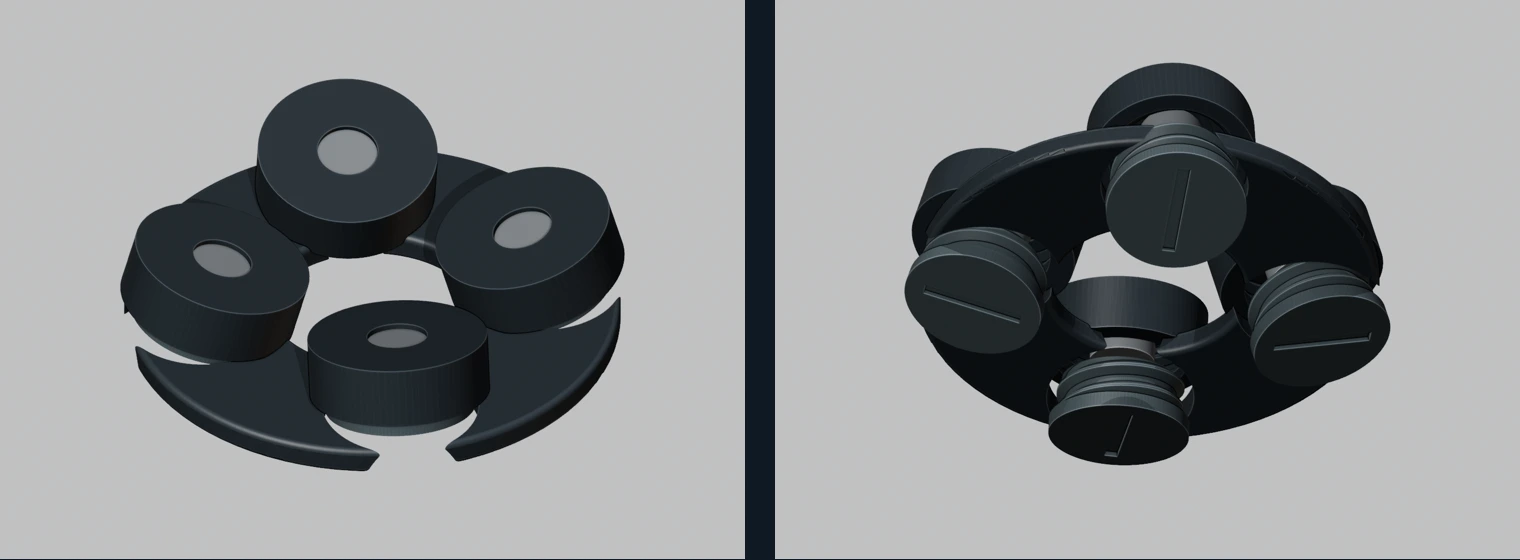

Actual v5 CAD render: four tilted magnet sockets at the front and removable screw cups at the back — v5 · Front and back views of the actual CAD. Not a photograph of a printed part.

v4 / Finished build

Printed. Assembled. Worn.

The finished v4 design, from separate parts to the clip on a shirt. Real photos, not CAD renders. Tap any photo to view it on its own.

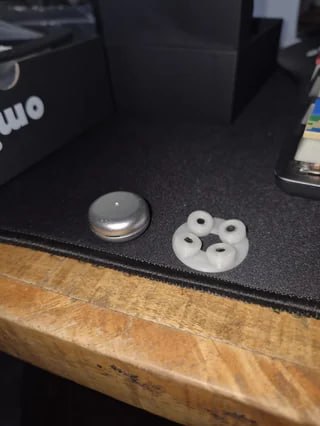

Silver Omi device beside the white four-lobed v4 magnetic clip on a black desk mat — **01 / The parts**Omi beside the finished white v4 clip.

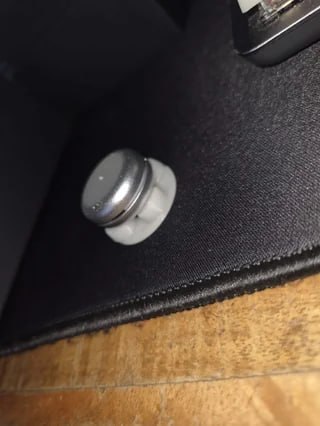

Side view of the silver Omi device seated on the white v4 clip on a desk mat — **02 / Assembled**Omi seated on the v4 clip, viewed from the side.

Silver Omi device worn near the neckline of a white graphic T-shirt beneath an open dark jacket — **03 / Worn**The finished v4 setup on a shirt, with Omi visible outside.

Choose a version

Same idea. Different loading direction.

v5 / REAR-LOADINGLatest iteration

Clear front. Screw cups behind.

Magnets load from the back in removable threaded cups. The front retaining lip is part of the body, so no cap flange sits on the contact side.

Ring diameter: 28.67 mm
Overall CAD height: 7.00 mm
Magnet bore / tilt: Ø5.30 mm / 15°
Front retaining lip: 0.32 mm nominal thickness

Cleaner contact side, not a thinner overall assembly. The tilted lip’s sliced thickness varies locally.

View v5 assembled and cutaway preview ↗

v4 / FRONT RETAINERSEarlier iteration

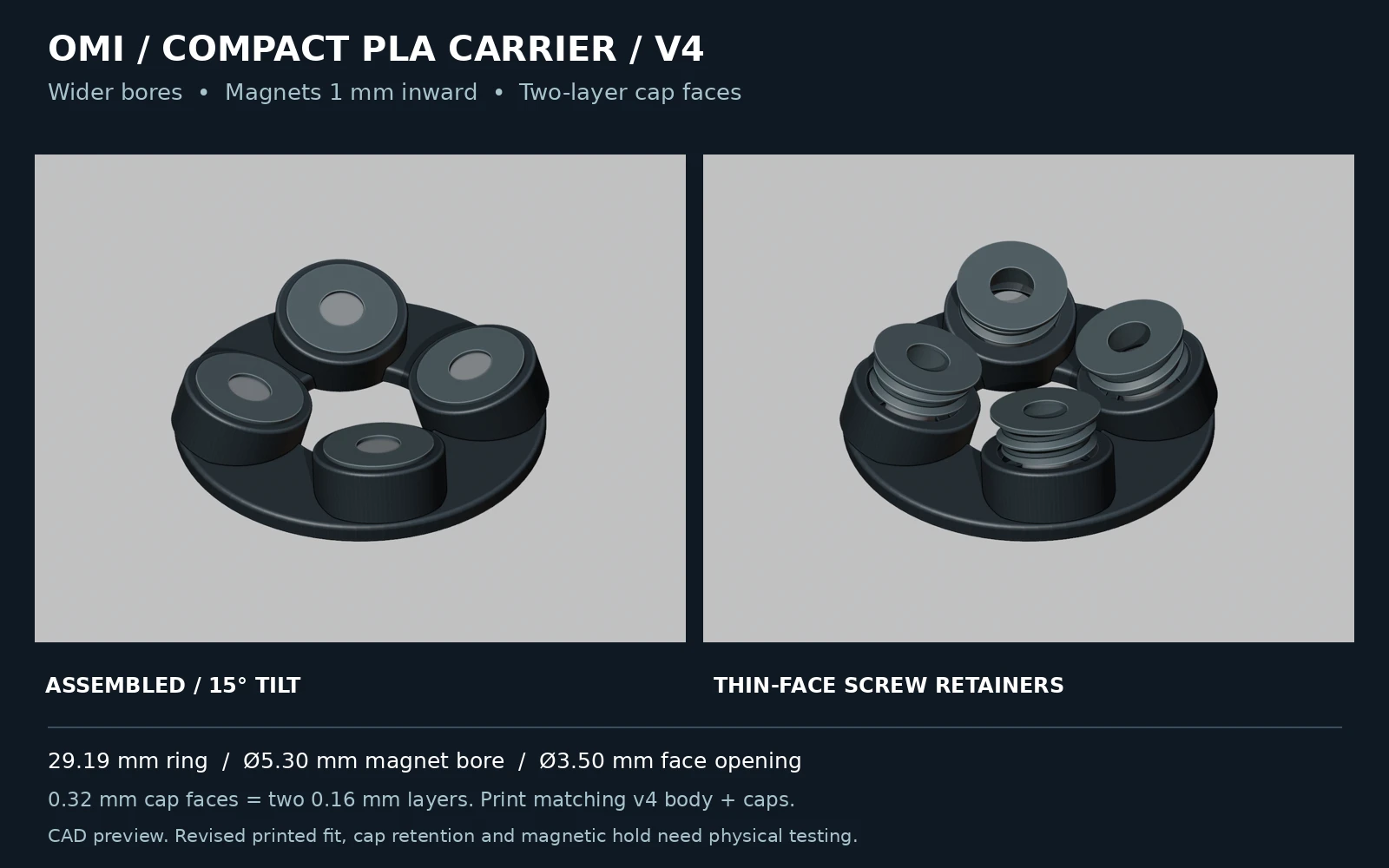

Actual v4 CAD render: assembled four-magnet carrier beside an exploded view of its thin front screw retainers — v4 · Assembled and exploded CAD views. Tap to view full size.

Compact body. Thin front caps.

Magnets sit inside threaded retainers that screw into the sockets from the front. The compact revision uses a thin retaining face and wider magnet bores.

Ring diameter: 29.19 mm
Overall CAD height: 6.33 mm
Magnet bore / tilt: Ø5.30 mm / 15°
Cap retaining face: 0.32 mm · two 0.16 mm layers

Use matching body and retainers from one version. v4 front retainers and v5 rear cups are not interchangeable.

Inside both ZIPs

Start small. Check the fit.

Each package includes STL print models, editable STEP CAD, Bambu 3MF projects, Python source, previews and a README with assembly and print notes.

Download and unzip one version. Read its README before choosing a plate.
Print the fit test first. Use OMI_PLA_FIT_TEST.3mf, or reslice models/fit_test_plate.stl for your printer.
Check your magnets and threads. The reference magnets are estimated Ø4 × 3 mm; measure yours. Check retention and polarity before trying the full carrier.

File integrity · SHA-256 checksums

Original v4 and v5 packages, unchanged. File sizes use decimal MB.

OMI-PLA-REAR-LOADING-v5.zip: e2456bb28e25e588b3522bb64a154e67289c29f356f9de09cb06a4c201c44bdd
OMI-PLA-FIT-PROTOTYPE-v4.zip: 8cd5900330256d15eca4dd5e1d77e5b1294dae343d4d017933c550d5802fcde3
